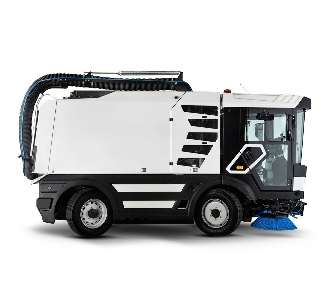

Comac HP6000
HP6000 is a high performance 6 cu.m. street sweeper which combines in one single machine the performance of two, thus ensuring maximum quality results.
Product Description
HP6000 is a high performance 6 cu.m. street sweeper which combines in one single machine the performance of two, thus ensuring maximum quality results.
Comac has designed the Twin Action System, a unique technology which combines the strength of mechanical action to collect larger waste and the efficiency of the suction action for dust, to provide excellent results, with one machine, in a single pass.
The powerful Twin Action System vacuums also the fine dust PM10 and reduces water consumption, facilitating use even in the most difficult conditions. It can save up to 100.000 liters of water per year.
The Twin Action system allows operation even on bumpy road surfaces: tree roots or protruding manholes are not a problem. No rigid element is in contact with the ground, therefore no breakage or excessive wear can occur during work; only the central brush touches the ground and thanks to its characteristics it follows the profile of the ground smoothly.
The new collecting system dramatically reduces wear and maintenance of mechanical parts, thanks to the central mechanical shaft that is made of steel and hydraulically operated.
HP6000 is equipped with a VM R756, which is specifically sized for continuous applications at constant speed with reduced consumption. It can work even for more consecutive shifts.
The large filtering surface and the efficiency of the dusty air intake distribution system over the entire surface, ensure continuity of performance over time: these characteristic together with the materials chosen (polyester) and the action of the two filter shaking, ensure the return of perfectly clean air into the environment.
Product Specifications
Air flow | 14000 cu.m/h |
---|---|
Central brush working width | 1400 mm |
Container lifting maximum height | 1820 mm |
Cylindrical central brush diameter | 600 mm |
Diesel tank capacity | 160 Liter |
Engine | VM R756 EU VI/Stage 3A |
Engine | 2300 rpm |
Engine power | 143/105 HP/KW |
Filtering surface | 50 sq.m |
Fuel | Diesel |
Machine height control | on all 4 wheels |
Machine height in transfer | 3000 mm |
Machine height when in operation | 2950 mm |
Machine length with side brushes | 5250 mm |
Machine length with side brushes + third brush | 5880 mm |
Machine weight in running order | 12100 Kg |
Machine width | 2000 mm |
Maximum gradient when empty | 20 % |
Maximum speed | 40 Km/h |
Parking and emergency brake | Hydraulic-negative |
Rear wheel traction | Hydraulic - Automotive |
Service brake | Hydraulic |
Side disc brushes diameter | 850 mm |
Suction motor rated power | 45 KW |
Suspensions | Hydraulic and independent |
Turning circle | 4945 mm |
Volume | 6000 Liter |
Water tank capacity | 220 Liter |
Wheels | 285/70 R19,5 |
Working speed | 0÷40 Km/h |
Working width with 2 side brushes | 2260 mm |
Working width with side brushes + third brush | 3450 mm |
