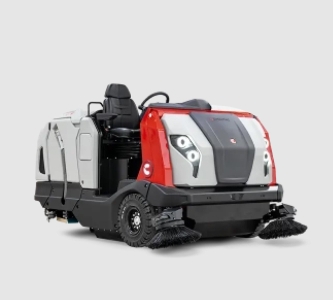

Nilfisk CS7010 D Hybrid
Hybrid and ePower combi machines - GREENER, CLEANER, SMARTER. CS7010 reinvents an entire class of equipment by reducing total cost of ownership, including operation, labor and maintenance, while effectively increasing fuel economy and runtime efficiency. Now the most economical solution is also the most ecological.
Product Description
Hybrid and ePower combi machines - GREENER, CLEANER, SMARTER.
CS7010 reinvents an entire class of equipment by reducing total cost of ownership, including operation, labor and maintenance, while effectively increasing fuel economy and runtime efficiency. Now the most economical solution is also the most ecological.
Available in three models, LPG-Hybrid, Diesel-Hybrid and ePower Battery. CS7010 delivers unparalleled performance, while replacing power-hungry, high-maintenance hydraulic system with efficient, state-of-the-art Electric Drive Technology. Whichever model you choose, the CS7010 delivers the lowest cost of ownership and the most suitable cleaning solution in its class.
Dedicated sweeping and scrubbing functions with one-pass cleaning keep debris dry without introducing scrub solution into the debris hopper. This provides operators and equipment owners with increased productivity and reduced maintenance. Lower total cost of ownership. CS7010 dispels the complexity and high maintenance of hydraulic systems that power conventional combination machines.
We've eliminated large hydraulic reservoirs, filters and oil coolers as well of the leak-prone hydraulic hoses, pumps, motors and valves. Hydraulic drives have been replaced with an intelligent system of electronically controlled, low maintenance electric drives.
This technology shift will save you a lot of money in reduced maintenance costs.
- ClearView™ sightlines and automatic speed reduction in turns for safer operation
- Tools-free tilt-out/lift-off recovery tank with integrated SmartFlow™
- Available with patented DustGuard™ airborne dust suppression technology
- High-capacity 285 liter front dry sweeper debris hopper with high-lift system
- Standard dual side brooms sweep entire squeegee path to minimize fouling
- Hybrid combination machine. Fuel less consumption, less. High running time on battery variant.
- Retractable offset deck and breakaway squeegee. Generation fitration system, variable filter shaking
- OneTouch™, MaxAccess, NoTools™. More efficient service, extreme commonality among platforms.
- Hybrid techonolgy and Ecoflex™
- Heated water, High pressure washer
Product Specifications
Engine type | Kubota |
---|---|
Power source | Diesel Hybrid |
Motor power source | D1305, 3 cyl, 29 Hp (21.7 kW) |
Scrubbing width | 1245 mm |
Sweeping width | 1540 mm |
Max. speed | 8.9 km/h |
Max. Climbing rate | 17.6 % |
Productivity theoretical/actual | 11080/7756 m²/h |
Solution tank | 284 Liter |
Recovery tank | 284 Liter |
Water flow | 3.8-11.36 l/min |
Squeegee width | 1350 mm |
Brush pressure | 90-127-181 Kg |
Brush size | 430 mm |
Brushes/pads qty. | 3 |
Hopper volume | 198 Liter |
Main filter area | 10.7 m² |
Main broom | 900 x 310 mm |
Side broom diameter | 381 mm |
Sound pressure level | 81 dB(A) |
Sound level lpa/lwa | 102 dB(A) |
Min. turn-around aisle width | 259/264 cm |
Length x width x height | 2620x1650x1500 mm |
Gross weight (gvw) | 2058 Kg |
Net weight | 1593 Kg |
Protection class / IP protection | IPX4 |
DustGuard™ Tank Capacity (Optional) | 110 Liter |
Adjustable steering and seat | Included |
Tip out recovery tank | Included |
Hopper safety arm assist | Included |
Automatic squeegee lift in reverse | Included |
Headlights | Included |
Back up warning alarm | Included |
Ergonomic driver seat | Included |
Diagnostic system | Included |
Direct throw sweeping | Included |
Variable high dump system | Included |
Two side brooms | Included |
Horn | Included |
Wet sweep by-pass | Included |
Automatic speed reduction | Included |
One-Touch™ control panel | Included |
Disc deck: 3 brushes | Included |
Debris tray | Included |
Ecoflex prepared | Included |
Multi-frequency filter shaker | Included |
Offset pivoting deck | Included |
Hybrid engine | Included |
Break away Squeegee | Included |
Scrubbing and sweeping | Included |
