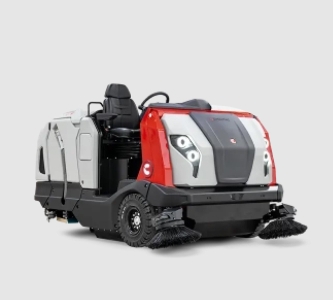

Nilfisk CS7010 D Hybrid

Hybrid and ePower combi machines - GREENER, CLEANER, SMARTER. CS7010 reinvents an entire class of equipment by reducing total cost of ownership, including operation, labor and maintenance, while effectively increasing fuel economy and runtime efficiency. Now the most economical solution is also the most ecological.

Brand: Nilfisk Code: 10216 Category: Combination Machines

Product Description

Hybrid and ePower combi machines - GREENER, CLEANER, SMARTER.

CS7010 reinvents an entire class of equipment by reducing total cost of ownership, including operation, labor and maintenance, while effectively increasing fuel economy and runtime efficiency. Now the most economical solution is also the most ecological.

Available in three models, LPG-Hybrid, Diesel-Hybrid and ePower Battery. CS7010 delivers unparalleled performance, while replacing power-hungry, high-maintenance hydraulic system with efficient, state-of-the-art Electric Drive Technology. Whichever model you choose, the CS7010 delivers the lowest cost of ownership and the most suitable cleaning solution in its class.

Dedicated sweeping and scrubbing functions with one-pass cleaning keep debris dry without introducing scrub solution into the debris hopper. This provides operators and equipment owners with increased productivity and reduced maintenance. Lower total cost of ownership. CS7010 dispels the complexity and high maintenance of hydraulic systems that power conventional combination machines.

We've eliminated large hydraulic reservoirs, filters and oil coolers as well of the leak-prone hydraulic hoses, pumps, motors and valves. Hydraulic drives have been replaced with an intelligent system of electronically controlled, low maintenance electric drives.

This technology shift will save you a lot of money in reduced maintenance costs.

  • ClearView™ sightlines and automatic speed reduction in turns for safer operation
  • Tools-free tilt-out/lift-off recovery tank with integrated SmartFlow™
  • Available with patented  DustGuard™ airborne dust suppression technology
  • High-capacity 285 liter front  dry sweeper debris hopper with high-lift system
  • Standard dual side brooms sweep entire squeegee path to minimize fouling
  • Hybrid combination machine. Fuel less consumption, less. High running time on battery variant.
  • Retractable offset deck and breakaway squeegee. Generation fitration system, variable filter shaking
  • OneTouch™, MaxAccess, NoTools™. More efficient service, extreme commonality among platforms.
  • Hybrid techonolgy and Ecoflex™
  • Heated water, High pressure washer

Product Specifications

Engine type Kubota
Power source Diesel Hybrid
Motor power source D1305, 3 cyl, 29 Hp (21.7 kW)
Scrubbing width 1245 mm
Sweeping width 1540 mm
Max. speed 8.9 km/h
Max. Climbing rate 17.6 %
Productivity theoretical/actual 11080/7756 m²/h
Solution tank 284 Liter
Recovery tank 284 Liter
Water flow 3.8-11.36 l/min
Squeegee width 1350 mm
Brush pressure 90-127-181 Kg
Brush size 430 mm
Brushes/pads qty. 3
Hopper volume 198 Liter
Main filter area 10.7 m²
Main broom 900 x 310 mm
Side broom diameter 381 mm
Sound pressure level 81 dB(A)
Sound level lpa/lwa 102 dB(A)
Min. turn-around aisle width 259/264 cm
Length x width x height 2620x1650x1500 mm
Gross weight (gvw) 2058 Kg
Net weight 1593 Kg
Protection class / IP protection IPX4
DustGuard™ Tank Capacity (Optional) 110 Liter
Adjustable steering and seat Included
Tip out recovery tank Included
Hopper safety arm assist Included
Automatic squeegee lift in reverse Included
Headlights Included
Back up warning alarm Included
Ergonomic driver seat Included
Diagnostic system Included
Direct throw sweeping Included
Variable high dump system Included
Two side brooms Included
Horn Included
Wet sweep by-pass Included
Automatic speed reduction Included
One-Touch™ control panel Included
Disc deck: 3 brushes Included
Debris tray Included
Ecoflex prepared Included
Multi-frequency filter shaker Included
Offset pivoting deck Included
Hybrid engine Included
Break away Squeegee Included
Scrubbing and sweeping Included
